WiFi Network Traffic Viewer

One of the many features Acrylic WiFi has to offer is its WiFi network traffic viewer, which allows you to analyze and view the IEEE 802.11 data packet captured during a WiFi analysis under Windows. This feature is disabled by default when Acrylic is launched.

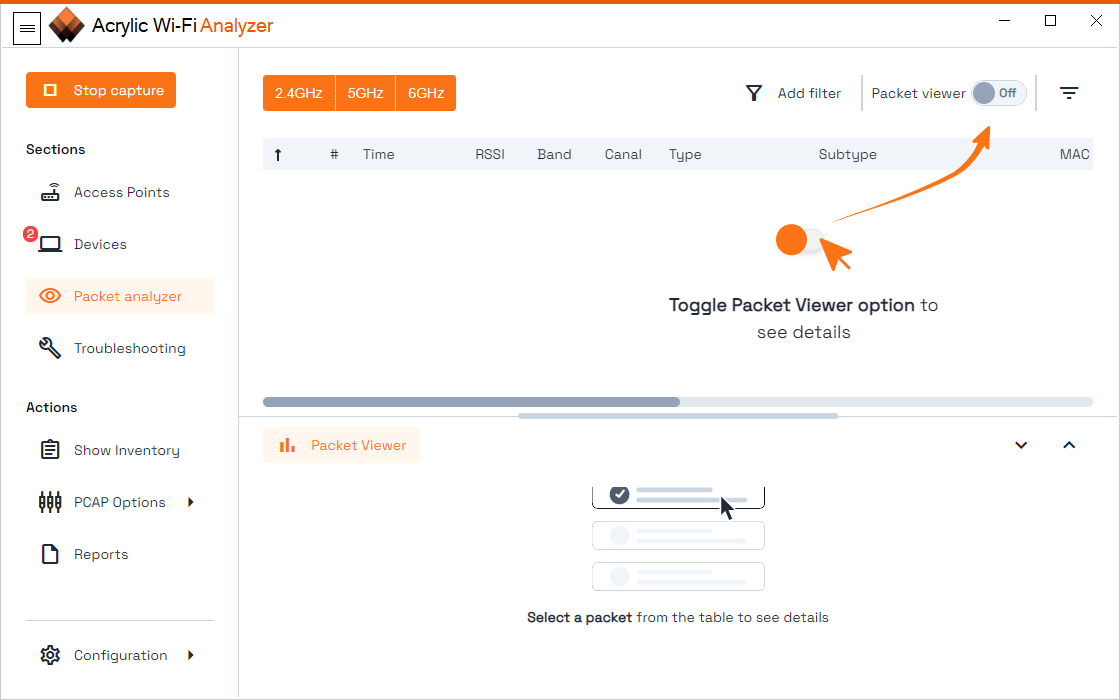

The data package viewer can be enabled by clicking on the “Packet Viewer” button on the Acrylic WiFi main menu bar, or by clicking on the “View packets” button on the “Packets” section.

Image 1: Packet viewer

Image 2: “Packets” section button disabled

After activating real time packet capturing, icons change their status, the “Packets” section button and the main menu button display “On”.

Image 3: Buttons enabled

In the “Packets” section, you see all 802.11 standard network packets grouped in three types: Management, Control, and Data, as well as the subtypes within each type.

Due to the large number of 802.11 standard network packets captured, it is necessary to apply a filtering mechanism to select only certain packets. To do exactly that, Acrylic WiFi has the “Filter” field.

By clicking on the “Help” button, you get assistance on the filter formats that can be used, valid operators, and also some filtering examples.

Image 4: Packet filter Help

Acrylic WiFi packet viewer can be used for visualizing information elements from a captured beacon packet and get details on the used encryption. In this case, a WPA2-CCMP encrypted WiFi network search will be performed.

To perform this search, the Information Element RSN (Robust Security Network) “pairwiselist” field is checked to verify if there is any 00:0F:AC:04 packet, which indicates the use of this encryption suite.

Image 5: Filter applied

Download our Free Wireless Scanner or give a try to our professional WiFi software.

By | 2017-06-16T09:39:26+00:00 9 May. 2014|4 Comments

4 Comments

  1. Javier 1 January, 2015 at 12:00 - Reply

    Thank you very much for your explanations they are really usefull.
    Just a question, I notice that in your pictures Time column is empty. I get also this column empty running Acrylic Wi-Fi Professional V2.2 on a Dell wireless 1702 b/g/n card. What should I do to get timing information in the traffic viewer ?
    Thanks

    • Tarlogic Security 17 January, 2015 at 20:38 - Reply

      Hello Javier,

      Thanks for your report. Thats a known bug that will be solved with Acrylic WiFi professional v2.3 release 🙂

  2. karthik 29 April, 2015 at 20:58 - Reply

    hi, this tool is Good stuff. I want to understand whether I can see WiFi stations related packets, if yes please let me know the procedure. Thanks & Regards, Karthik
